PPS

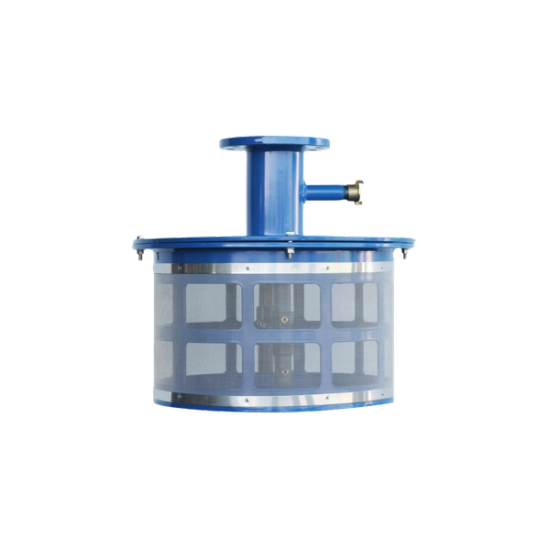

PPS is a hydraulic self-cleaning pre-pump suction strainer designed to protect the pump and reduce solids in the intake water. Installed submerged at the water source, it enables reliable pumping from wastewater, reservoirs, rivers, lakes and wells for agricultural, municipal and industrial applications.

self-cleaning: Continuous cleaning of the outer screen through pressurised water jets and a hydraulically driven rotating sprinkler.
protection: Reduces solids entering the pump and helps extend its service life.
versatile: Available with filtration grades from 1200 to 2500 µm and suitable for horizontal or vertical installation.

PPS is a self-cleaning suction strainer designed for installation on the suction side of the pump, below the water surface. Its purpose is to reduce solids before pumping and protect the pump against debris accumulation. It can be used in wastewater intakes, reservoirs, rivers, lakes and wells.

During operation, a small amount of pressurised water from the discharge side of the pump is returned to the PPS through a ball valve and a manual control filter. This water feeds the cleaning system and is sprayed from the inside towards the outside of the screen, removing accumulated debris and keeping the outer surface clean during pumping.

Manufactured as standard in ST37.2 carbon steel, with shot-blasting pretreatment and a 150–200 micron epoxy-polyester powder paint coating, PPS is supplied with flanged connections. It is available with 1200 and 2500 µm filtration grades, diameters from 4" to 20" and flow capacities of up to 1400 m³/h, depending on model and filtration grade.

Solutions

Self-cleaning suction strainer for pump protection directly at the water intake

PPS is designed for installations where pumps operate with water that may contain suspended solids, including irrigation intakes, municipal networks, sewer systems and industrial applications.

Its hydraulic self-cleaning system keeps the outer screen surface clear during suction, reducing the entry of debris into the pump and supporting stable operation.

With different available diameters and filtration grades, PPS provides a solution adapted to the required flow rate and water source conditions, combining pump protection, operational reliability and simplified maintenance.
