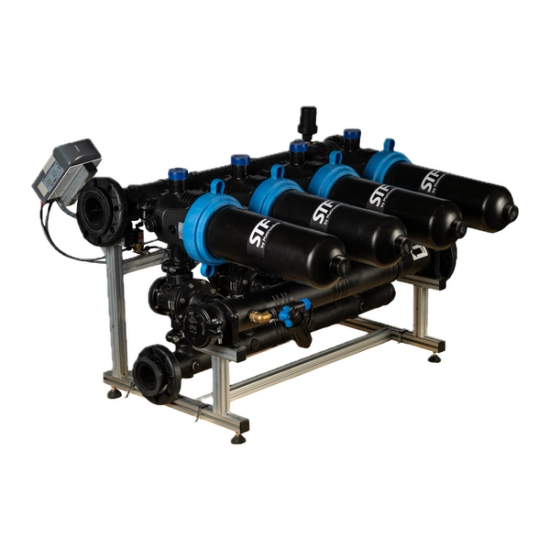

AD-SL X
The STF AUTODISC AD-SL X is an automatic, modular single-line disc filter designed for continuous, high-precision filtration from 20 to 400 microns, ideal for agricultural and industrial applications across various flow rates.
- automatic: Performs automatic disc cleaning, ensuring continuous flow and minimizing the need for manual intervention.
- modularity: Single-line configurations from 2 to 6 filter elements (models 2x2 to 6x2).
- innovation: High-surface POD element with Hybridisc discs (1,600 cm² per element).
The AUTODISC AD-SL X by STF Filters is an automatic disc filtration system designed to cover a wide range of flow rates in agricultural and industrial applications. Thanks to its single-line modular design (from 2 to 6 elements), the number of filtration units can be seamlessly adjusted to meet specific site requirements.
It offers filtration grades from 20 to 400 microns, ensuring high-efficiency particle and organic matter retention. The filtration process is continuous, maintaining an uninterrupted water supply even during backwash cycles.
The backwash process combines pressurized water with air injected through Venturi nozzles at just 1.5 bar. This mixture creates intense turbulence for complete disc separation, achieving up to 10% water savings while cushioning the discs to minimize wear. Furthermore, the system operates at working pressures up to 10 bar and temperatures up to 60 °C, constructed from highly durable materials such as glass-fiber reinforced polypropylene, AISI-316 stainless steel, and EPDM.
Available in models with inlet/outlet connections of DN-80, DN-100, and DN-150, offering total filtration surfaces up to 9,600 cm², the AUTODISC AD-SL X delivers a compact, sustainable, and reliable solution.
Automatic Disc Filter for High-Performance Systems
The STF AD-SL X filter is engineered to deliver efficient, continuous, and high-precision depth filtration in both agricultural and industrial installations.
Equipped with a patented low-pressure backwash system featuring Venturi air injection, it operates at a minimum cleaning pressure of just 1.5 bar. This air-water mixture creates intense turbulence for complete disc separation, saving up to 10% in water consumption while cushioning the discs to extend their lifespan.
It features a high-surface POD disc design (1,600 cm² per element) with filtration grades ranging from 20 to 400 microns, ensuring exceptional retention of organic matter and suspended solids across different water qualities.
Its compact single-line modular layout simplifies integration and maintains an uninterrupted supply during backwash cycles.
