FMA 2000

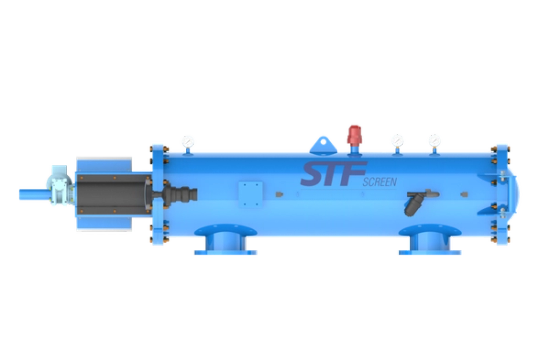

The STF FMA-2000 is a self-cleaning electric screen filter, ideal for industrial, agricultural, and municipal applications. It delivers precise filtration with suction-based automatic cleaning and a wide flow range.
- automatic: Suction cleaning system activated without manual intervention.
- electric: Powered by an electric motor for efficient cleaning operation.
- horizontal: In-line design for easy installation in compact systems.
The STF Filters FMA-2000 is an electric self-cleaning screen filter designed for applications requiring high efficiency and low maintenance in water filtration systems. It operates fully automatically using a suction cleaning system triggered by pressure differential or timer, without interrupting flow.
Its horizontal design allows for seamless integration into existing systems and enables compact in-line installation. The FMA-2000 features an electric motor that drives the suction scanner and drainage system, ensuring effective and fast cleaning.
It is available in connections from DN-80 (3”) to DN-400 (16”) and handles flow rates from 20 to 2200 m³/h. Filtration grades range from 100 to 1000 microns, adapting to various water qualities.
Constructed with a carbon steel body coated in epoxy-polyester and filtering elements in AISI-316 stainless steel, it ensures high durability and corrosion resistance. The FMA-2000 is ideal for irrigation, industrial, and municipal supply applications.
- DS FMA 2000 - TRI Ver.00.25.pdf
- FMA-2003 - TRILINGUAL GENERAL DRAWING.pdf
- FMA-2004 - TRILINGUAL GENERAL DRAWING.pdf
- FMA-2006 - TRILINGUAL GENERAL DRAWING.pdf
- FMA-2008 - TRILINGUAL GENERAL DRAWING.pdf
- FMA-2010 - TRILINGUAL GENERAL DRAWING.pdf
- FMA-2012 - TRILINGUAL GENERAL DRAWING.pdf
- FMA-2014 - TRILINGUAL GENERAL DRAWING.pdf
- Manual FMA 2000 - TRI 25.Ver.00.pdf
Electric self-cleaning filter for high-demand environments
The FMA-2000 filter has been developed for applications requiring constant and efficient filtration, such as intensive agricultural irrigation, industrial processes, and municipal water supply networks.
Its horizontal design and electrically driven suction cleaning system ensure continuous operation without interruptions in water flow.
In industrial systems, it protects machinery and sensitive processes, keeping water free of impurities and extending equipment lifespan.
Additionally, its robust structure and ability to handle high flow rates make it a reliable solution for demanding, high-performance projects.
Discover how our FMA-2000 electric self-cleaning filter works in this demo video
- Uninterrupted filtration: The FMA-2000 performs automatic suction cleanings, maintaining a constant flow without manual intervention.
- Efficiency for large systems: Robust horizontal design, ideal for high-flow installations in industrial, agricultural, or municipal environments.
