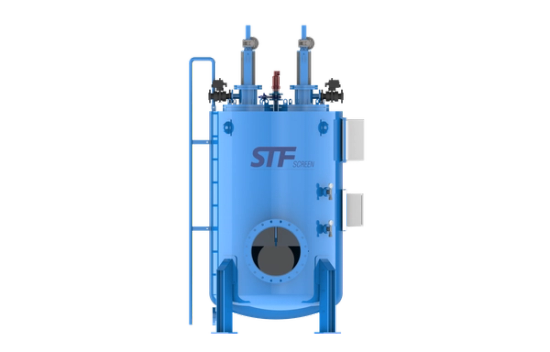

FMA 10000
High-flow vertical self-cleaning electric filter. Power, durability, and automation for industrial processes, drinking water, irrigation, and cooling towers. Continuous performance with no manual intervention.
- automatic: Triggers cleaning cycles without interrupting flow, removing particles with suction scanning.
- electric: Operates with up to 1.48 kW motor and 24 V DC control, powered by 400 V three-phase supply.
- vertical: Vertical configuration saves space in facilities and eases access for maintenance.
The FMA 10000 is a self-cleaning mesh filter designed for industrial and municipal applications requiring high flow capacity and continuous operation. It is ideal for drinking water, chemical processing, cooling towers, agricultural irrigation, and biological control.
Constructed from S-235-JR carbon steel with epoxy-polyester coating, it features a filtration mesh made of AISI 304/316 stainless steel. Its automatic suction-scanning cleaning system operates without interrupting the flow.
Configured vertically, it is available with DN-450 to DN-600 connections, handles flow rates up to 7200 m³/h, and offers filtration degrees ranging from 1000 to 10 µm. Operating pressure ranges from 2 to 10 bar, and fluid temperatures up to 50 °C are supported.
It runs with an electric motor up to 1.48 kW, controlled by 24 V DC and powered via 400 V three-phase. Depending on the model, it includes 2 to 4 backwash valves, with 25-second cycles and water consumption between 175 and 700 liters per cycle.
- DS FMA 10000 - TRI Ver.00.25.pdf
- FMA-10210 - TRILINGUAL GENERAL DRAWING.pdf
- FMA-10212 - TRILINGUAL GENERAL DRAWING.pdf
- FMA-10214 - TRILINGUAL GENERAL DRAWING.pdf
- FMA-10310 - TRILINGUAL GENERAL DRAWING.pdf
- FMA-10312 - TRILINGUAL GENERAL DRAWING.pdf
- FMA-10314 - TRILINGUAL GENERAL DRAWING.pdf
- FMA-10410 - TRILINGUAL GENERAL DRAWING.pdf
- FMA-10412 - TRILINGUAL GENERAL DRAWING.pdf
- FMA-10414 - TRILINGUAL GENERAL DRAWING.pdf
- Manual FMA 10000 - TRI 25.Ver.00.pdf
FMA 10000: automatic industrial filtration for high flow rates
The FMA 10000 combines strength and advanced technology for continuous performance with minimal maintenance.
Its automatic cleaning system removes solids efficiently without stopping the water flow.
Vertical design optimizes space in complex installations and improves service access.
An electric and intelligent solution for potable water, industry, irrigation, and invasive species control.
Power, automation, and vertical design for large-scale systems
Non-stop backwashing
Suction-based cleaning system ensures continuous and efficient operation.
Electric motor and vertical layout
Optimized installation with precise control for demanding environments.
