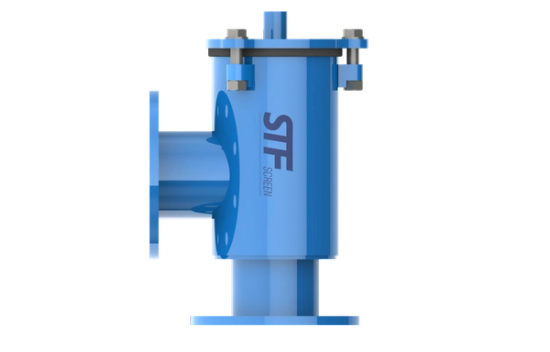

FCL
L-pattern strainer designed to trap large solids. Ideal for protecting systems in demanding agricultural and industrial environments.
- manual: Filter element is cleaned manually, with optional automation for improved efficiency.
- in-line: Designed for straightforward, direct integration into fluid systems.
The STF FCL L-pattern strainer is an effective solution for capturing large solids in agricultural and industrial systems. Functioning similarly to manual mesh filters, it uses a perforated stainless steel plate with 4 mm (4000 µm) holes for coarse filtration, ideal for early-stage protection.
Maintenance is performed manually by removing and cleaning the filter element without disassembling the entire system. It can also be adapted for automated cleaning depending on project needs.
The housing is made of carbon steel with surface blasting up to SA 2 ½ and an epoxy-polyester coating, ensuring long-lasting durability even in harsh environments. Available in DN-50 to DN-300, it supports pressures up to 10 bar and fluid temperatures up to 50 °C.
Its L-shaped design is especially beneficial for installations with limited space, enabling easy and efficient integration to protect downstream equipment from stones and other large debris.
- DS FCL - TRI Ver.00.25.pdf
- FCL-10 - TRILINGUAL GENERAL DRAWING.pdf
- FCL-12 - TRILINGUAL GENERAL DRAWING.pdf
- FCL-2-R - TRILINGUAL GENERAL DRAWING.pdf
- FCL-3 - TRILINGUAL GENERAL DRAWING.pdf
- FCL-4 - TRILINGUAL GENERAL DRAWING.pdf
- FCL-5 - TRILINGUAL GENERAL DRAWING.pdf
- FCL-6 - TRILINGUAL GENERAL DRAWING.pdf
- FCL-8 - TRILINGUAL GENERAL DRAWING.pdf
- Manual FCL TRI 25.Ver.00.pdf
L-pattern strainer for compact system layouts
The FCL is ideal for systems needing to block large solids before fine filtration.
Its L-shaped design makes it perfect for installation in space-constrained environments while maintaining high retention efficiency.
Built in carbon steel with corrosion-resistant coating, it ensures durability even under demanding conditions.
Manual cleaning of the element is simple and can be automated to optimize maintenance time.
